Buy Tube Bundle Cleaning System — A Buyer’s Guide

Fouling inside shell and tube heat exchangers silently steals cash from every industrial operation. Scale forms a tiny layer over time but the financial impact grows rapidly-higher fuel costs, unscheduled shutdowns, and equipment that ages years before the optimal schedule. If you’re thinking of purchasing a tube bundle cleaning system, the sheer number of choices available may seem intimidating.

This primer discusses the several cleaning techniques available today, the key specs, and the errors that cost plant operators the most. Below we detail each factor so you can match the best tube bundle cleaning systems to the application inside your plant.

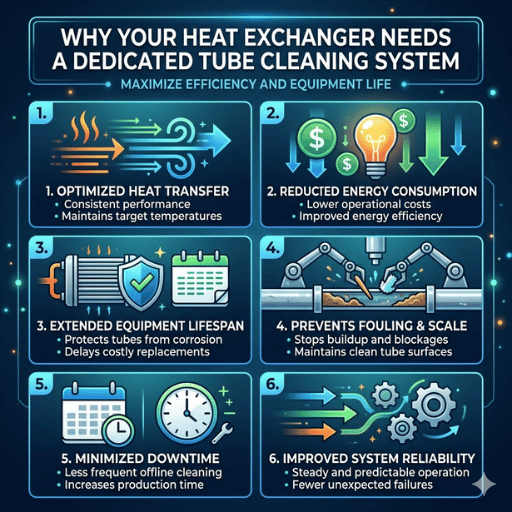

Why Your Heat Exchanger Needs a Dedicated Tube Cleaning System

Heat exchanger fouling is one of the most expensive maintenance issues in industrial operations — yet it often goes uncorrected until performance plummets. A dedicated tube cleaning system pays for itself many times over by removing loss-inducing deposits before they trigger emergency shutdowns or shorten equipment lifespan by years.

The impact of scale is sobering. As reported by Müller-Steinhagen and Malayeri (2010), the total cost of fouling accounts for roughly 0.25 percent of GDP in industrialized economies. That total includes additional fuel usage, additional equipment for cleaning, and additional labor to remove scale, biological matter, and corrosion products inside tube bundles.

A published study by Pritchard (1984) revealed that a 0.6 mm layer of scale on a tube can boost fuel consumption by 40 percent. In oil refineries and chemical facilities, where heat exchangers make up about 15 percent of total maintenance, roughly half of this spending is attributed to fouling. Industry insiders note that unanticipated shutdowns due to fouled heat exchangers often hit $1 million per day in production cost, a figure used in early production cost studies by Garret-Price and colleagues.

The best value cleaning method attacks the deposit type, inside your tubes. General-purpose pressure washers risk glazing the tube walls or miss some deposits. Purpose-made tube cleaning systems are engineered to operate safely within the narrow clearances of heat exchanger tubes while exerting a precise force.

Mechanical vs. Chemical vs. High-Pressure Water — Which Method Wins?

There is no one-size-fits-all cleaning method for tubes in every condition. The optimum choice relies upon the deposit type, tube material, wall thickness, and desired time frame to restore the performance. All approaches exhibit trade-offs in cost, speed, effectiveness, and risk of damages to the tube walls.

Mechanical cleaning of heat exchanger tubes continues to be the preferred method for mild contamination. Rotating nylon or brass fibers scrub scale deposits clean, but they cannot remove hard mineral scale.

Chemical cleaning breaks down deposits that mechanical tools cannot. Obtaining specific deposit chemistry is difficult; online professional communities like Eng-Tips suggest applying a test coupon before proceeding with a chemical cleaning. An inappropriate acid concentration can erode the tube walls or produce hydrogen embrittlement in carbon steel.

Semi-automated tube cleaning machines remove the widest span of deposits and tube materials. water is the cleaning agent, so there is no additional chemical waste stream.

What to Look For When You Buy Tube Bundle Cleaning Equipment

Purchasing the wrong tube bundle cleaning equipment is a capital expense that significantly impacts productivity maintenance for many years. A well-matched system fits your exchanger profile, deposit level, and labor skill set. An incorrect one is underutilized because it can’t get to the tubes or just doesn’t have the pressure for the fouling sites.

Field practitioners have identified eight factors that separate good equipment from expensive regrets:

• 1. Lance diameter and reach Lance OD should be a minimum of 2 mm smaller than the smallest tube ID. Typical lances vary from 0.31 to 0.59 (8-15 mm) and should be able to reach the full length of tube without flex deflection.
• 2. Pressure rating — light biological fouling needs around 10,000 PSI, while calcium sulfate or silica deposits require 25,000 to 40,000 PSI. Match pressure to deposit hardness.
• 3. Feed speed and control – semi-automatic feeders at 18-30 in/sec produce reliable, reproducible results. Manual feeding yields more variable results, and necessitates strong arm muscles when feeding large (over 500 tubes) bundles.
• 4. Type of drive: pneumatic versus electric – Pneumatic motors are more lightweight, safe themselves in premise danger zones and can be used in wet atmosphere. Electric motors have greater torque and precisely controlled speed, but need explosion proof ratings in classified areas.
• 5. Portability – for a plant with exchangers in several buildings or on upper pipe racks a compact wheeled frame may save hours of set up time.
• 6. Brush and nozzle compatibility — standard brush sizes (10-24 mm) should fit the system, and replacement nozzles should be available from multiple sources.
• 7. safety interlock—that’s a dead-man trigger, a pressure-relief valve, and the lance retracts if back-pressure goes to high.
• 8. Data logging – The more advanced systems are recording pressure for per tube, cleaning feed distance and cleaning length. This information can be used to confirm cleaning quality and plan future cleaning intervals.

When evaluating vendors, request a demonstration with your actual tube samples and deposit type. Industry data shows that equipment validated on-site before purchase has significantly lower return and complaint rates than units selected from catalog specifications alone. BOSHIYA Group offers on-site testing as part of its tube bundle cleaning services before a purchase commitment.

When Does Renting a Tube Bundle Cleaner Make More Sense Than Buying?

Not every plant needs to own its cleaning equipment outright. The decision between buying and renting a tube bundle cleaner depends on how often you clean, how many exchangers you maintain, and whether your team has the trained operators to run the equipment safely. A clear-eyed comparison of both options prevents overspending in either direction.

Automated systems cut cleaning time 60-75% compared to manual methods, which changes the buy-vs-rent math. Purchase cost is repaid in three to four years for plants cleaning more than five exchangers per year. Contractors remain the better option for any plant cleaning fewer than four times a year, in tight quarters, or at locations where a trained operator cannot be kept on staff.

“The plants that benefit most from owning equipment are the ones that can keep it busy. If it cleans fewer than 500 tubes per year, renting usually costs less.” — Maintenance engineering perspective, industrial plant operations

Another compromise is also possible. Some industrial contractors — starting with BOSHIYA’s Maintenance & Equipment division — allow “lease to own” schemes, in which rents are amortized against the cost of the asset. This enables a plant to “try out” the equipment on its particular exchangers before investing total ownership in it.

Investigate industrial tube cleaners with flexible procurement options.

Big takeaway: If you clean less than four exchangers/year renting is basically a no brainer. For more than that run a five year total cost comparison for consumables, operators wages, and the value of downtime before making any decisions.

Tube Bundle Cleaning Systems for Shell and Tube Heat Exchangers — Sizing Guide

Sizing a tube bundle cleaning system. The equipment should fit the actual size of your shell and your tube heat exchangers (clamp). A system too small will not clean properly, while one too large wastes money and creates unnecessary safety risk.

Outlined below are the parameters of standard (ASME BPVC Section VIII) and TEMA designed common exchanger types. For custom fabrication the OEM should verify the dimensions used in selecting cleaning tools.

BOSHIYA Group offers portable cleaning systems tailored to exchanger ranges of 50 to 5,000+ tubes. Their technical team can match cleaning configurations to your exchanger data sheets.

Key point: never move beyond the number of your Exchanger’s tube ID, tube length, and tube count. Those three numbers tell you everything you need to know for 90% of your equipment selection.

Five Costly Mistakes Buyers Make (and How to Avoid Them)

Purchasing a tube bundle cleaning system has enough factors that even savvy maintenance managers occasionally make a bad choice. These errors are common in industrial discussions and field service records. Each can be prevented with some simple tending-to in advance:

Most expensive mistake: It is not the equipment. It is the downtime and rework away from the non-optimized equipment. Take the time to evaluate, size, demonstrate, and plan your spare parts inventory before you pay for the down time.
