Diesel Engine Bundle Puller &
Aerial Bundle Extractor for Heat Exchanger Service
15 to 150 tons of pulling force from a diesel-hydraulic motor drive. Seven models built for refineries, petrochemical plants, and power generation — shipped worldwide from BOSHIYA Group.
Request a Quote

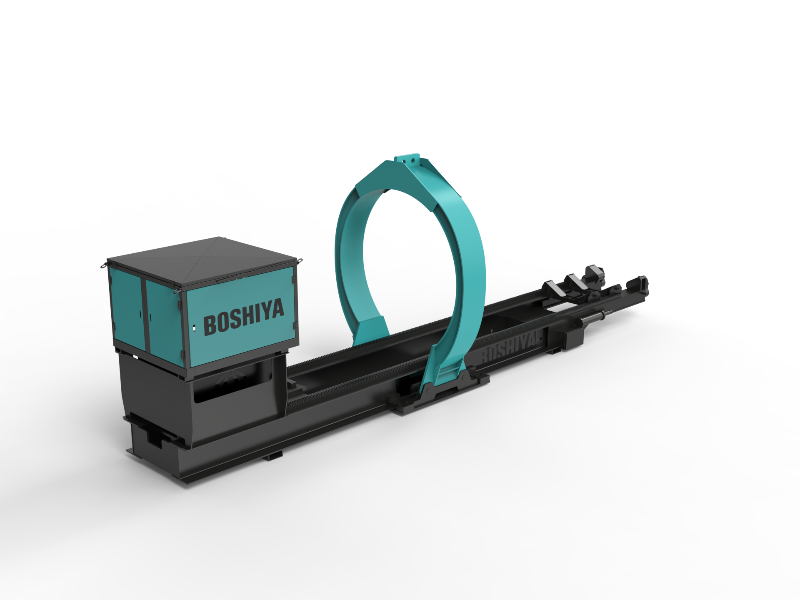

DRAWING: DIESEL_HYDRAULIC_UNIT
STATUS: PRODUCTION_READY
BOSHIYA Group — Your Tube Bundle Extractor Manufacturer & Supplier
We’ve been making industrial equipment since 1915. Not a typo — over a hundred years of building machines that pull, lift, and move things that don’t want to be moved. Started as a single workshop, now we’re a global operation with engineering teams across three continents.
:: FIELD_RECORD // SAUDI_ARABIA_1990S ::
Here’s the thing about tube bundle extraction — it’s one of those jobs where you really don’t want the machine to quit halfway through. We learned that the hard way back in the late ’90s when a client in Saudi Arabia had a 60-ton bundle seized solid inside a crude oil cooler. Took us three days with an undersized rig. After that job, we redesigned our entire product line from the ground up. Every model we sell today traces back to lessons from that project.
Global Standards & Reliability
Our factory runs ISO 9001:2015 quality management, CE marking on every unit, and we’ve passed SGS audits seventeen times without a major finding. Big words? Sure. But we back them up — our bundle extractor machines have logged over 400,000 operating hours across 60+ countries. Refineries in Texas, petrochemical complexes in Jubail, power stations in Southeast Asia. The machines keep running.
FILE: 1915_TO_PRESENT
109+
Years in Business
60+
Countries Served
3,200+
Units Delivered
400K+
Field Hours
Bundle Extractor & Puller — Full Model Range
Seven models. 25-ton entry level up to 150-ton heavy-duty. All diesel-hydraulic, all built for the kind of abuse you find in turnaround season.
MODEL BSY-25
25-Ton Bundle Extractor
The compact option. Fits tight pipe racks and works well for smaller shell-and-tube exchangers.
Max Weight25,000 kg
Max Reach6,100 mm
Pull Force30 ton
Frame Size1,600 mm
MODEL BSY-45
45-Ton Puller
Mid-range workhorse. Handles the bulk of refinery exchangers without being oversized.
Max Weight45,000 kg
Max Reach8,000 mm
Pull Force60 ton
Frame Size2,000 mm
MODEL BSY-60
60-Ton Multi-Speed
Multi-speed gearbox for variable fouling conditions. When 45 tons isn’t quite enough.
Max Weight60,000 kg
Max Reach8,000 mm
Pull Force30-60 ton
Frame Size2,000 mm
MODEL BSY-80
80-Ton Heavy Duty
Built for bigger jobs like crude oil coolers. The 2,750 mm frame handles large bundles easily.
Max Weight80,000 kg
Max Reach8,000 mm
Pull Force35-80 ton
Frame Size2,750 mm
MODEL BSY-100
100-Ton Industrial
Handles tube bundles up to 10 meters. Ideal for ethylene crackers and large power gen.
Max Weight100,000 kg
Max Reach10,000 mm
Pull Force40-100 ton
Frame Size3,000 mm
MODEL BSY-125
125-Ton LNG Grade
12-meter reach and 3,500 mm frame. Engineered for the massive scale of LNG facilities.
Max Weight125,000 kg
Max Reach12,000 mm
Pull Force50-125 ton
Frame Size3,500 mm
MODEL BSY-150
150-Ton Max Power
Our biggest unit. 150 tons of raw pulling force. If your exchanger is bigger, call for custom.
Max Weight150,000 kg
Max Reach12,000 mm
Pull Force50-150 ton
Frame Size3,500 mm
Technical Data
Bundle Extractor Capacity & Specification Comparison
All data from actual factory testing. We don’t pad specs — what you see here is what the machine delivers on the job.
| Specification | BSY-25 | BSY-45 | BSY-60 | BSY-80 | BSY-100 | BSY-125 | BSY-150 |
|---|---|---|---|---|---|---|---|
| Max Weight (kg) | 25,000 | 45,000 | 60,000 | 80,000 | 100,000 | 125,000 | 150,000 |
| Max Stroke (mm) | 6,100 | 8,000 | 8,000 | 8,000 | 10,000 | 12,000 | 12,000 |
| Standard Frame (mm) | 1,600 | 2,000 | 2,000 | 2,750 | 3,000 | 3,500 | 3,500 |
| Max Pull Force (ton) | 30 | 60 | 30 / 50 / 60 | 35 / 65 / 80 | 40 / 80 / 100 | 50 / 100 / 125 | 50 / 100 / 150 |
| Power Source | Industrial Diesel with Hydraulic Transmission — Global Warranty | ||||||
| Controls | Remote Control with Load Monitoring + Emergency Stop | ||||||
| Front Extension (Optional) | +1 meter | ||||||
| Rear Extension (Optional) | +2 meter or +3 meter | ||||||
| Custom Length | Supported on all models | ||||||
| Custom Pulling Force | Supported on all models | ||||||
Pull force values shown as multi-speed selections where applicable. Actual ton capacity needed depends on fouling, bundle condition, and shell bore. Contact engineering for site-specific calculations.
Detailed Comparison
Compare Bundle Extractor Models
Side-by-side comparison of all diesel bundle puller models — dimensions, pull force options, frame sizes, and configuration details.
View Comparison
B2B Partnership
Wholesale Pricing & OEM Supplier Services
Whether you’re a rental fleet operator, an EPC contractor, or a service company buying in volume — we’ve structured our program for buyers who need reliable delivery and competitive pricing. Our bundle puller for heat exchanger service comes with full ton capacity documentation and third-party test certificates.
OEM / ODM
Custom branding, color schemes, modified specs. Your logo on the machine — we handle the engineering, you handle the customer.
Volume Pricing
MOQ starts at 3 units. Discounts scale to 20% on fleet orders. Sample units available for evaluation before committing.
Global Logistics
DDP shipping to major ports. US warehouse option for faster last-mile delivery. Containerized or RORO — your call.
Fleet Buyers
Running 5+ extractors across multiple sites? Ask about our fleet service program — annual maintenance, spare parts kits, and priority field service bundled at a fixed annual cost. We’ve been doing this for EPC firms in the Middle East since 2008.
Real-World Challenges
Problems We’ve Solved — And How
These aren’t hypothetical scenarios. Every one of these came from actual field calls.
Problem
Seized Bundle Won’t Budge
Crude oil cooler bundle hadn’t been pulled in 6 years. Carbon and scale had basically welded it in place. Their rental puller maxed out at 40 tons and couldn’t move it.
Corpus Christi, TX — Refinery
Solution
BSY-80 with Multi-Speed Gearbox
Swapped in our 80-ton unit, started on low gear at 35 tons to break the initial seal, then ramped to 65 tons for sustained pull. Bundle came out clean in under two hours. No damage, no header distortion.
Problem
No Overhead Access on Site
Exchangers installed under a dense pipe rack, overhead access blocked by cable trays and a 4-meter clearance limit. Couldn’t position an aerial tube bundle rig from above.
Jubail, Saudi Arabia — Petrochemical Plant
Solution
Self-Propelled Configuration
Deployed our diesel-powered self-propelled unit — no overhead lift needed. Drove it into position under the rack, aligned with the exchanger channel, and completed the job at grade level. Saved them two days of rigging work.
Problem
Bundle Damage During the Pull
A power plant was losing heat exchanger tubes every turnaround — their old electric puller had no load feedback, and operators were blindly applying force until something bent or cracked.
Vietnam — Power Plant
Solution
Load-Sensing Hydraulics + Wireless Remote
Installed a BSY-60 with precision load gauges and a wireless remote. Operators can now see real-time force readings and modulate the pull and push speed from a safe distance. Zero damage across three turnaround cycles since deployment.
Problem
Multiple Exchanger Sizes on One Site
An EPC contractor handling service on a gas processing plant had exchangers ranging from 1.6 m to 3.0 m bore — buying separate machines for each size wasn’t in the budget.
Gas Processing Plant — EPC Contractor
Solution
Modular Yoke + Interchangeable Frames
One BSY-100 with three different lifting frame sizes. Swap takes about 45 minutes on-site. They cover their entire fleet of exchangers with a single machine. That’s the kind of flexibility we designed into the system from the start.
Frequently Asked Questions
What Our Customers Actually Ask
Short version: it’s a big, diesel-powered machine that grabs the bundle by its header and pulls it straight out of a shell. A tube bundle puller like ours drives a hydraulic pump through the engine, which feeds a multi-speed gearbox, which moves a carriage along guide rails. You get steady, controllable force — anywhere from 15 to 150 tons depending on the model. The diesel power source means you don’t need external electricity, which is a big deal on turnaround sites where temporary power is unreliable or where the area is classified as hazardous.
Depends on three things, honestly. First, the dry weight of your bundle — but don’t stop there. A bundle that weighs 40 tons dry can need 60+ tons of pull force when it’s fouled and seized. Second, bundle length — our models go from 6.1 meters up to 12 meters standard, with extensions available. Third, the shell diameter — make sure the lifting frame fits. We size every machine to the specific job. Tell us your exchanger specs and we’ll recommend the right model, no guesswork involved.
Yep. That’s actually one of the biggest reasons clients come to us. Traditional aerial work assumes you’ve got crane access overhead. But in crowded pipe racks and congested plant layouts? Not always possible. Our self-propelled models drive into position under their own power — no overhead lift, no rigging crew, just diesel and hydraulics. We’ve done this in refineries across the Gulf Coast and Middle East where overhead clearance was as low as 4 meters.
A moderately fouled bundle? Figure 30 to 90 minutes for the actual pull-and-push cycle. Heavily seized bundles in older plants — the ones that haven’t been touched in 5 or 6 years — can run 2 to 4 hours. Setup and alignment add another 30 to 60 minutes on top of that. The diesel-hydraulic system doesn’t overheat during long pulls, which matters when you’re fighting a stubborn component at sustained high load.
Nothing exotic. Standard diesel service — oil changes every 250 hours, hydraulic fluid level checks, filter swaps. Inspect the jaw pads and guide rails before each job for wear. The hydraulic hoses should be replaced on a time-based schedule (we recommend every 3 years regardless of hours). Every unit ships with a detailed service card, and our field team handles annual calibration if you want it done right.
We do. MOQ is 3 units, with volume discounts that scale up to 20% for larger fleet orders. OEM buyers get custom branding — your logo, your color scheme, modified data plates. We ship DDP to most international ports and have a US warehouse option for faster last-mile. Sample units are available if you need to evaluate before committing to a larger order.
