How Bundle Extractors Work: Complete Maintenance Guide

Every refinery turnaround has a clock ticking behind it. heat exchangers sit at the center of that clock – and when a tube bundle needs to come out for cleaning, inspection, or replacement, the bundle extractor is what makes or breaks the schedule. A slow pull or a botched alignment can stall an entire unit for days, while a well-executed extraction wraps up in hours.

This guide breaks down the working principle behind bundle extractors, what goes on inside the hydraulic system and frame, and – just as important – how to maintain the machine so it performs when the pressure is on. Whether you are planning your first turnaround with a tube bundle puller or looking to cut downtime on the next one, the information here draws from field practice, equipment specs, and industry standards that govern the work.

What Is a Bundle Extractor?

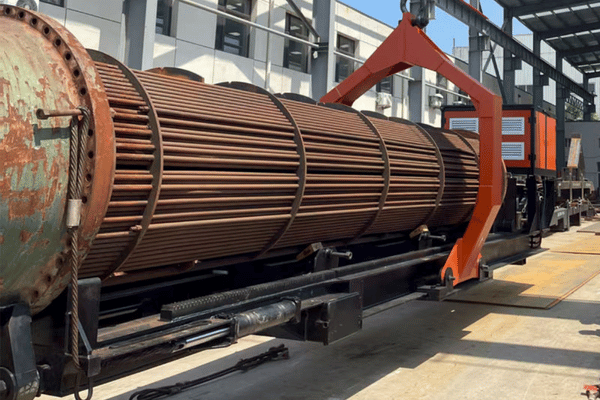

A bundle extractor is a machine built to pull tube bundles out of shell-and-tube heat exchangers safely and under controlled force. In petrochemical plants, refineries, and power stations, heat exchangers transfer thermal energy between two fluids separated by a bank of bundle tubes housed inside a cylindrical shell. Over time, fouling, corrosion, and mechanical wear tighten the bond between the tube bundle and the heat exchanger shell, demanding removal for maintenance – and that is where the bundle extractor comes in.

Before dedicated extraction machines existed, crews relied on cranes and rigging alone. That approach still works for smaller units, but bundles in large-scale refinery service can weigh 45 tons or more and extend 9 to 12 meters in length. Pulling that mass horizontally out of a shell with nothing but slings and a crane hook introduces risks that a purpose-built tube bundle extractor eliminates: uncontrolled lateral loads, pinch points, and alignment errors that damage tube sheets.

The API 660 standard governs the design and manufacturing, along with maintenance, of shell-and-tube heat exchangers in petroleum service. Alongside it, the TEMA Standards – published by the Tubular Exchanger Manufacturers Association since 1939 – classify exchangers into Class R (refinery), Class B (chemical), and Class C (general commercial), each with different demands on the extraction process.

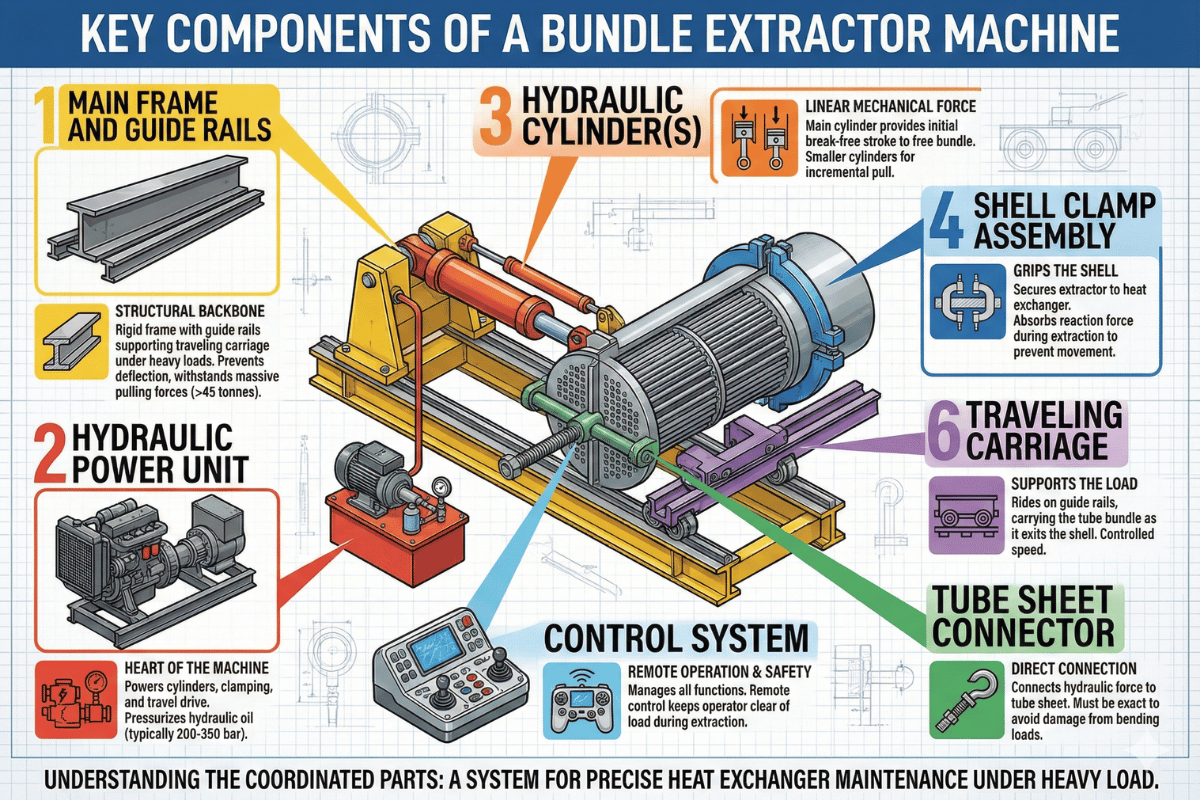

Key Components of a Bundle Extractor Machine

A bundle extractor is not one single mechanism – it is a system of coordinated parts that must work together under heavy load. Understanding each component helps operators diagnose problems faster and plan heat exchanger maintenance with precision. Here are the core subsystems:

1. Main Frame and Guide Rails – A structural backbone, typically a durable steel I-beam or box-section frame. Guide rails run the full length and carry the traveling carriage that supports the tube bundle during extraction. Its frame must be rigid enough to prevent deflection under pulling force, which in larger machines can exceed 45 tonnes.
2. Hydraulic Power Unit – Consider this the heart of the machine. A hydraulic pump (usually driven by a diesel engine or electric motor) pressurizes hydraulic oil and feeds it to the cylinders that generate pulling and pushing force. Typical systems operate at 200-350 bar. That same hydraulic system also powers the clamping mechanism and the travel drive.
3. Hydraulic Cylinder(s) – One or more cylinders convert the hydraulic pressure into linear mechanical force. Its main cylinder first provides the tube bundle break-free stroke – the initial motion required to free the tube bundle from the shell after sitting dormant for months or years. Smaller secondary cylinders then provide the incremental pull.
4. Shell Clamp Assembly – A clamp assembly of adjustable jaws or fork arms grips the heat exchanger shell flange. It performs dual roles: it secures the extractor in relation to the shell; it absorbs the reaction force during bundle extraction so the machine does not drive itself away from the exchanger.
5. Tube Sheet Connector – A crossbar, hook, or threaded rod connects to the tube sheet of the bundle. Every mechanical connection between the hydraulic cylinder and the load is direct here. Engagement has to be exact – a cocked or bowed connection imparts bending loads to the connector and tube sheet, risking damage.
6. Traveling Carriage – Rides on guide rails and supports the tube bundle as it exits the shell. Excessive speed is undesirable; various arrangements use a traction motor that rotates drive wheels through a reducer and transmission, or hydraulic push from the cylinder.
7. Control System – Can be anything from a simple manually operated valve bank, to a remote control console with proportional valves and digital readouts. Remote operation allows the operator to remain clear of the load during extraction, a major safety advantage.

How Does a Bundle Extractor Work? Step-by-Step Extraction Process

The bundle extraction process occurs in a defined sequence. Each of these key steps matters – skip one and it may damage the tube bundle, the shell, or the extraction process equipment. An example of a typical extraction sequence on a horizontal shell-and-tube heat exchanger:

1. Isolate and depressurize heat exchanger. Maintain all process connections lockout/Tagout. Drain, flush and de-energize all fluids and gases. Remove the channel head and floating head to expose the tube sheet.
2. Position the bundle extractor machine. Transport machine into position in front of the exchanger. For self-propelled units, drive the extractor. For crane-mounted units, “lift” the machine into place. Alignment on the centerline is critical – the extractor’s pull axis should intersect the center of the shell bore.
3. Align and Clamp to the Shell. adjust the shell clamp jaws to grip the flange or shell body. Shift the adjustment screws or hydraulic leveling cylinder to fine-tune the horizontal and vertical alignment. At this stage, misalignment translates directly into increased friction loads on the tube bundle as the operator pulls.
4. Connect to the Tube Sheet- Fasten the crossbar or pulling rod to the tube sheet. Check that it is centered and tight. A spreader bar is sometimes used by crews to spread the load on the face of the tube sheet.
5. Break the Bundle Free- Engage the main hydraulic cylinder at slow speed. The initial break-free requires the most force because the heat exchanger bundle has been settled in the shell under process conditions- as scale, corrosion products, and thermal expansion all snug the fit. Operators monitor the hydraulic pressure gauges carefully to keep the force within rated limits.
6. Extract the Bundle-After the bundle moves, activate the progressive pull mode. The carriage moves forward along the guide rails, supporting the bundle weight as it withdraws from the shell. Operating speed is purposely slow and steady- generally 1 to 3 meters per minute- to prevent shock loads. If the machine reaches its cylinder end stroke before the bundle is fully withdrawn, retract the cylinder, re-engage, and proceed.
7. Support and Move-Once bundle removal is complete, support the full load on the extractor’s carriage. The operator can then lower or lift the bundle to a cleaning cradle, inspection platform, or transfer trailer.
8. Putting it Back-After maintenance, bundle installation uses the same machine running backward- the hydraulic cylinder pushes instead of pulls. Alignment can be even more critical here, as a cocked bundle can gouge the shell bore or damage baffles.

“In our experience servicing turnarounds across the Middle East and Southeast Asia, the single biggest time-saver is getting the centerline alignment right before any hydraulic force is applied. A 15-minute alignment check can prevent a 4-hour re-pull when the bundle jams halfway out.”

— BOSHIYA Group, Maintenance & Equipment Division

Types of Bundle Extractors: Which One Fits Your Operation?

The optimal machine for each bundle extraction task will vary depending on bundle size and weight, site access, and available lifting assets. Here is how the major types compare:

Aerial bundle extractors use the most popular machine for high-volume refinery turnarounds where exchangers are perched on raised pipe racks. A crane lifts the extractor into its working position, the machine conducts the horizontal pull by itself. Capabilities top out at 125 tons with reaching lengths of 6 to 14.5 meters- sufficient for the largest shell-and-tube heat exchangers in petrochemical service.

Self-propelled models bridge the gap where crane access is restricted or where the exchangers are on the ground. They move into position under their own power, saving critical set-up time. However, the maximum capacities are somewhat lower- most topping out in the 25 to 50 tonne range.

Essential Maintenance Practices for Bundle Extractors

A bundle extractor that fails during a turnaround is worse than not having one at all – the crew has already committed to the extraction plan, and changing to an alternate method mid-job costs hours. Maintaining the machine means sticking to a routine maintenance schedule.

Pre-Use Checks (Before Every Job)

• ✔
  Check hydraulic hoses and fittings for leaks, wear, or bulges
• ✔
  Check hydraulic oil level, color – contaminated oil is black and/or opaque
• ✔
  Check shell clamp jaw wear – if worn, they no longer hold under load
• ✔
  Grease guide rails and carriage wheels
• ✔
  Test remote control operation (if present) – verify dead-man switch operates
• ✔
  Make sure hydraulic cylinder extends/retracts through all values

Scheduled Maintenance Intervals

“We have seen turnaround teams ignore the pre-use hydraulic oil check because the machine ‘worked fine last shutdown.’ Then the pump cavitates halfway through the pull because moisture condensed in the reservoir during two years of storage. Twenty minutes of checking saves twenty hours of scrambling.”

— BOSHIYA Group, Field Service Team

Common Bundle Extractor Problems and Troubleshooting

When a bundle extractor stalls during a pull, the operator needs to analyze quickly. Here are the common faults and the first place to check:

One error new operators make is to overlook a slight misalignment drift after the break-free stroke. That initial pull overcomes static friction, and the machine may move slightly as the load is transferred. If you do not re-measure at that point, the bundle can bind against the shell wall partway through the extraction – turning a 2-hour job into an 8-hour recovery effort.

Safety Measures During Bundle Extraction Operations

Bundle extraction involves heavy loads, hydraulic pressure, and limited work-space. Cutting corners on safety and efficiency has a direct impact on injury statistics. The practices below are consistent with OSHA 1926.251 (Rigging Equipment for Material Handling) and common industry operational guidelines:

• ✔
  Load rating verification — Confirm the bundle weight (from plant records or calculation) does not exceed the extractor’s rated capacity. Never estimate.
• ✔
  Exclusion zone — Establish a clear zone around the extraction path. No personnel within the swing radius of the bundle or behind the extractor during pulling.
• ✔
  Lockout/tagout — The heat exchanger must be fully isolated, drained, and depressurized before any mechanical work begins. Verify with a zero-energy check.
• ✔
  Daily sling and rigging inspection — Per OSHA, all slings and fastenings must be inspected by a competent person each day before use. Reject any damaged hardware immediately.
• ✔
  Qualified rigger on site — OSHA requires that a qualified rigger directs hoisting activities. This person oversees crane lifts for aerial extractors and verifies rigging connections.
• ✔
  Proof testing — Custom lifting accessories (slings, spreader bars, adapter plates) must be proof-tested to 125% of rated load before first use, per OSHA 1926.251.
• ✔
  PPE requirements — Hard hat, safety glasses, steel-toe boots, and gloves as a minimum. Add hearing protection when diesel-powered extractors operate.

The ASME Boiler and Pressure Vessel Code (BPVC) also applies directly – the heat exchanger itself is a pressure vessel, and any operation that could damage its integrity (such as gouging the shell bore during extraction) requires re-inspection per the code.
